Thermal[IR] Camera

Thermal[IR] Camera

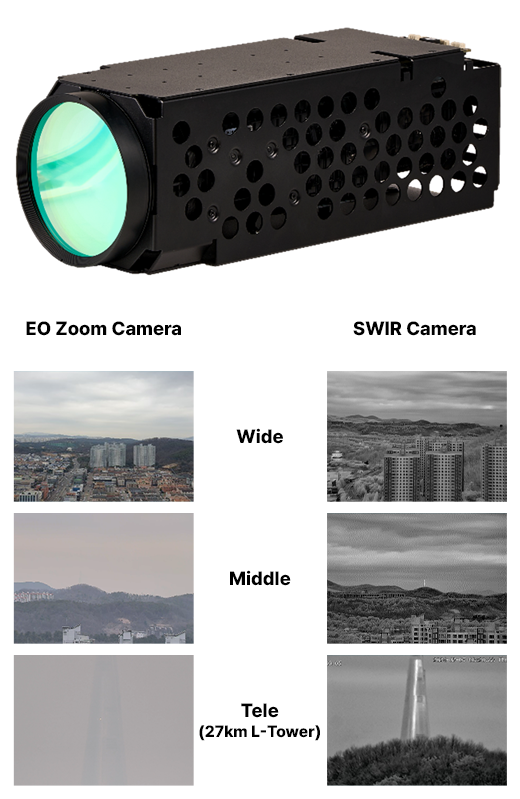

SWIR CAMERA

Model Resolution Focal length Interface / Function SoC / IPmodule
EOGS-SWIR-HD_15610ZIP 1280*1024 5um 1/2” InGaAs f=15~610mm [x40] LVDS / VISCA / PELCO / ONVIF / EIS / WDR / DNR Seyeon IP


  • SWIR CAMERA
  • 1280*1024, 5um pixel, 04~1.7um band detector
  • 15.2~610mm continuous zoom SWIR lens
  • FOV : 23.8˚~0.6˚
  • Digital Zoom : x16
  • Video output to 1290*1024 @60fps
  • Support H.265, high encoding compression rate
  • Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP
  • Image Stabilization : EIS ON/OFF
  • Various function: PTZ control, intelligent alarm, customized OSD
  • Power supply : DC +9~+12V
  • Dimension(mm) : 320*109*109
  • Weight : 3200g

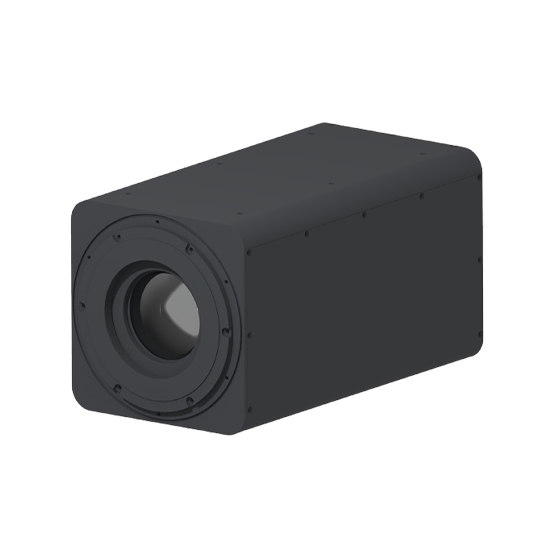

LWIR CAMERA

Model Resolution Focal length Interface / Function SoC / IPmodule
EOGS-LWIR-25225ZIP 1280*1024 12um 1/2” InGaAs f=25~225mm [x9] LVDS / VISCA / PELCO / ONVIF Seyeon IP
EOGS-LWIR-50350ZIP 1280*1024 12um 1/2” InGaAs f=50~350mm [x5] LVDS / VISCA / PELCO / ONVIF Seyeon IP

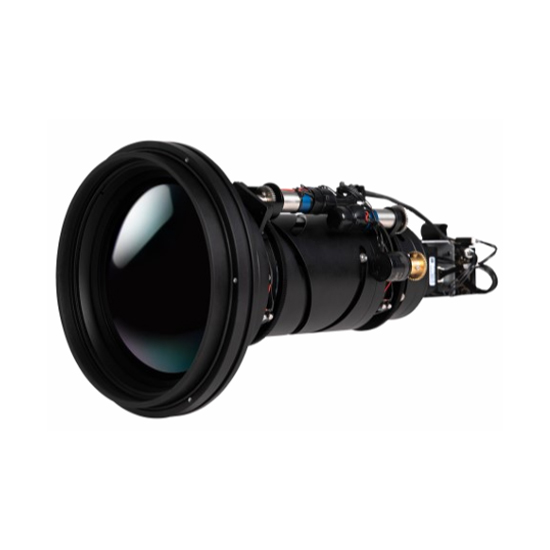

MWIR CAMERA

Model Resolution Focal length Interface / Function SoC / IPmodule
EOGS-MWIR-90900ZIP Cooled 640*512 15um Cooled MCT Infrared FPA Detector f=90~900mm [x10] LVDS / VISCA / PELCO / TTL / EIS / SDI Seyeon IP
EOGS-MWIR-65650ZIP Cooled 640*512 15um Cooled MCT Infrared FPA Detector f=65~650mm [x10] LVDS / VISCA / PELCO / TTL / EIS / SDI Seyeon IP
