| General | |
|---|---|

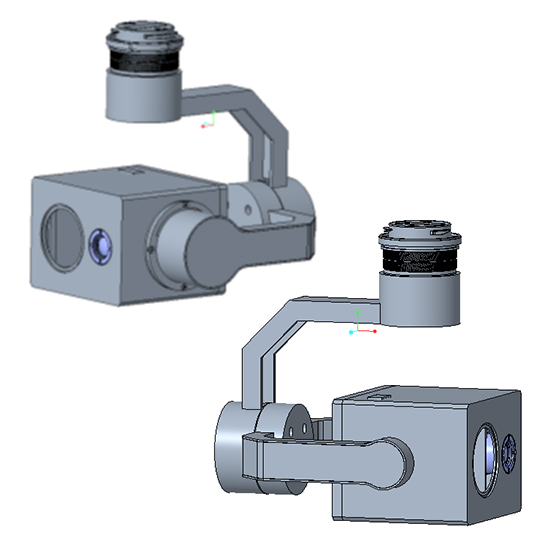

| Product Name | EOGS-8010U-GV6009 |
| Dimensions | 142x 141 x 118mm |
| Weight | < 480g±5g |
| Protection Rating | Class 1M(IEC 60825-1:2014) |
| Laser Safety | IP53 |
| Support Aircaraft | Matrice 300RTK,Matrice 350RTK |
| Hardware Parameter | |
| Working voltage | DC12V ~ DC24V |
| Output voltage | 5V (connect with S.Bus) |
| Dynamic current | 800~3200mA @ 12V |
| Video Output | IP (2160P/1080p/720p @30fps) |
| Local-storage | SD card (Up to 1T,class 10, FAT32 or ex-FAT) |
| Photo storage format | JPG(3840*2160) |
| Video storage format | MP4 (4K@30fps) |
| Card reading online | HTTP read pictures |
| Control method | UART / S.BUS/ TCP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Output interface | Support DJI SkyportV2 |
| Gimbal Spec | |
| Angle scope of structure design | Yaw/Pan: ±150° ,Pitch/Tilt: -60°～+120°,Roll: -90°～+60° |
| Angle scope of software design | Yaw/Pan: ±140° ,Pitch/Tilt: -45°～+115° |
| Angular Vibration angle | Pitch/Roll/Yaw: ±0.01° |
| Mount | Detachable |
| Maximum Controlled Speed | Yaw/Pan: 90°/s ,Pitch/Tilt: 90°/s |
| Operating Mode | Orientation lock, course following, one click down, One-key to center |
| Visible | 3840*2160 @ 4.8-48mm |
| LWIR | 640@12um 9.1mm |
| vehicle and human detection | support |
| vehicle and human Tracking | support |
